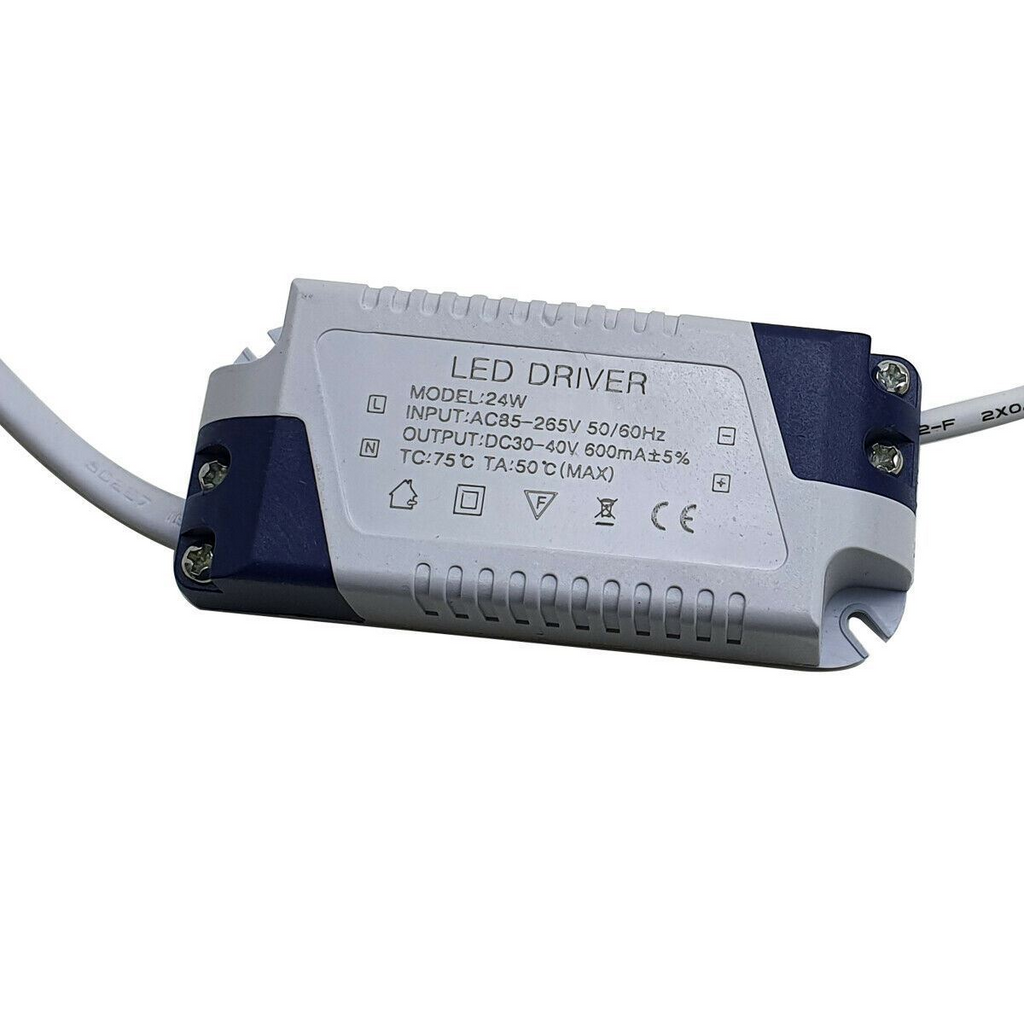

Black And White AC100-240V Constant Current LED Transformer~1408
Specifications/ Technical Details Of White Transformer
| Item Type | LED driver |
|---|---|
| Material: | Plastics |
| Power: | 1-3W/4-7W/8-12W/12-18W/18-25W/24-36W/48W/36-50W |
| Input Voltage: | AC 85-265V |
| Output Voltage: | DC 3-12V/12-26V/24-42V/36-63V/54-87V/72-144V/37-48V/108-165V |
| Amps: | 300 /1000mA |
| Waterproof Rate: | Non-Waterproof |
| Indoor/outdoor usage: | Indoor |
| Dimmable: | No |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | Yes |
| Overcurrent Protection: | Yes |
| Over Temperature Protection: | Yes |
| Average Life (hrs): | 50000 Hours |
| Certificate: : | CE, RoHS certification. |
| Warranty: | 3 years |
| Working Temperature: | 50-85oC |
| LED driver transformer suitable for: | LED strips, LED modules, LED bulbs, Low-voltage lighting systems, Automotive LED lights, Small motors, Fans, Sensors, Security cameras |
1 - 3W DC 9-14V Model: 1 - 3W
- Output power: 3W
- Input voltage: AC 85-265V 50/60Hz
- Output voltage: DC 9-12V
- Output Current: 250mA (± 5%)
- Shell material: engineering plastics
- Protection: Short Circuit Protection
- Conversion efficiency: 85%
- Size: about 6.5 x 3.2 x 2.2 cm
4 - 7W DC 12-25V Model: 4 - 7W
- Output power: 7W
- Input voltage: AC 85-265V 50/60Hz
- Output voltage: DC 12-25V
- Output Current: 300mA (± 5%)
- Shell material: engineering plastics
- Protection: Short Circuit Protection
- Conversion efficiency: 80%
- Size: about 6.5x 3.2 x 2.2 cm
8W-12W DC 25-45V Model: LED8-12W
- Output power: 8-12W
- Input voltage: AC 100-265V 50/60Hz
- Output voltage: DC 25-45V
- Output Current: 300mA (± 5%)
- Shell material: engineering plastics
- Protection: Short Circuit Protection
- Conversion efficiency: 80%
- Size: about 8.5 x 3.7 x 2.2 cm
18-25W DC 54-87V Model: 18-25W
- Output power: 18-25W
- Input voltage: AC 85-265V 50/60Hz
- Output voltage: DC 54-87V
- Output Current: 300mA (± 5%)
- Shell material: engineering plastics
- Protection: Short Circuit Protection
- Conversion efficiency: 80%
- Size: about 8.5 x 3.7 x 2.2 cm
25 - 36W DC 75-135V Model: 25 - 36W
- Output power: 25 - 36W
- Input voltage: AC 85-265V 50/60Hz
- Output voltage: DC 75-135V
- Output Current: 300mA (± 5%)
- Shell material: engineering plastics
- Protection: Short Circuit Protection
- Conversion efficiency: 80%
- Size: about 11 x 4.2 x 2.5 cm
Package Contents:
- 1* selected Watts LED Light Driver
